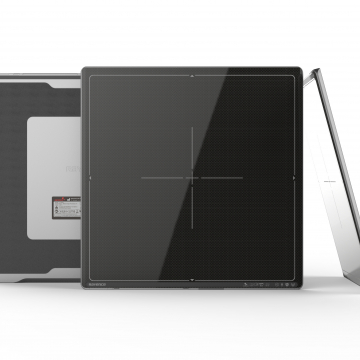

1717WCC/WGC

Array ( [node_srl] => 15833 [parent_srl] => 0 [menu_name_key] => 产品 [isShow] => 1 [text] => 产品 [href] => https://www.rayence.com/cmosdetector_cn [url] => cmosdetector_cn [is_shortcut] => Y [desc] => [open_window] => N [normal_btn] => [hover_btn] => [active_btn] => [selected] => 1 [expand] => N [list] => Array ( [15835] => Array ( [node_srl] => 15835 [parent_srl] => 15833 [menu_name_key] => CMOS平板探测器 [isShow] => 1 [text] => CMOS平板探测器 [href] => https://www.rayence.com/cmosdetector_cn [url] => cmosdetector_cn [is_shortcut] => N [desc] => [open_window] => N [normal_btn] => [hover_btn] => [active_btn] => [selected] => 0 [expand] => N [list] => Array ( ) [link] => CMOS平板探测器 ) [15837] => Array ( [node_srl] => 15837 [parent_srl] => 15833 [menu_name_key] => TFT平板探测器 [isShow] => 1 [text] => TFT平板探测器 [href] => https://www.rayence.com/tftdetector_cn [url] => tftdetector_cn [is_shortcut] => N [desc] => [open_window] => N [normal_btn] => [hover_btn] => [active_btn] => [selected] => 1 [expand] => N [list] => Array ( ) [link] => TFT平板探测器 ) [15839] => Array ( [node_srl] => 15839 [parent_srl] => 15833 [menu_name_key] => I/O传感器 [isShow] => 1 [text] => I/O传感器 [href] => https://www.rayence.com/iosensor_cn [url] => iosensor_cn [is_shortcut] => N [desc] => [open_window] => N [normal_btn] => [hover_btn] => [active_btn] => [selected] => 0 [expand] => N [list] => Array ( ) [link] => I/O传感器 ) [15843] => Array ( [node_srl] => 15843 [parent_srl] => 15833 [menu_name_key] => 软件 [isShow] => 1 [text] => 软件 [href] => https://www.rayence.com/software_cn [url] => software_cn [is_shortcut] => N [desc] => [open_window] => N [normal_btn] => [hover_btn] => [active_btn] => [selected] => 0 [expand] => N [list] => Array ( ) [link] => 软件 ) ) [link] => 产品 )

TFT平板探测器

提供X射线屏蔽室高效作业流程

产品咨询列表

概览

轻量、无缝、ISO4090磁带大小规格
耐冲击、震动及划痕
电池驱动时间：4.5小时
适合携带式摄影图像
自动触发技术

规格

荧光膜	Csl : Tl / Gd2O2S:Tb
有效面积	422.7 x 422.7 / 427.0 x 427.0 /430.1 x 430.1 毫米
有效像素	3,268 x 3,268 / 3,072 x 3,072像素
像素间距	127 / 139 / 140微米
极限分辨率	127type: Min. 2.5 / Max. 3.93 线对/毫米 139type: Min. 2.5 / Max. 3.59 线对/毫米 140type: Min. 2.5 / Max. 3.57 线对/毫米
模数转换	14 / 16 位
预览时间	≤ 2 秒
接口	有线 : 1Gbps 以太网无线 : 802.11 a/g/n/ac Wireless LAN
能量范围	40~150 千伏峰值
尺寸（宽 x 长 x 高）	460 x 460 x 15 毫米
重量	3.5 千克 (7.7 磅) 含电池
