1212DCA·DGA

30 x 30 cm

Examining various item available
  • Specialized for Die-casting
  • Suitable for Equipment system

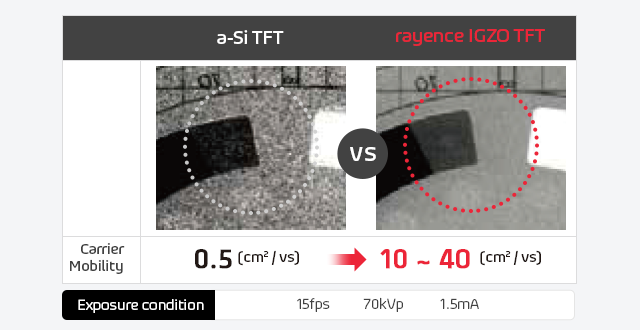

Premier Image Quality
  • Advanced Super IGZO TFT
  • High contrast & Less noise
  • High resolution with no lag
Innovative solution by special size & design

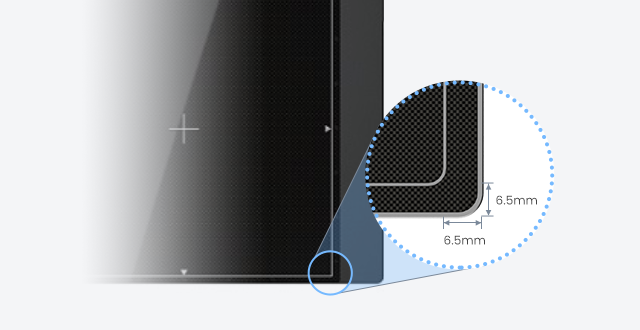

  • Minimized dead space
Specification
Sensor Type

Super IGZO TFT

Scintillator

CsI / GOS

Total Pixel Matrix (Pixels)

1536 X 1536 (@1x1)
768 X 768 (@2x2)

Active Area (mm)

298.0 X 298.0

Pixel Pitch (㎛)

194 (@1x1)
388 (@2x2)

Frame Rate (fps)

18 (@1x1)
36 (@2x2)

Energy Range (kVp)

40 - 320

Power Consumption

Typ. 15 (Max.30)

A/D Conversion (bits)

16

Data Interface

GigE

Dimension (mm)

334.0 x 326.0 x 49.9

Weight (kg)

5.3

  • Product design and specifications are subject to change without prior notice to improve product performance.
  • Downloads are only supported for customers who have filled out information.
  • The image quality level may vary depending on the product usage environment.
