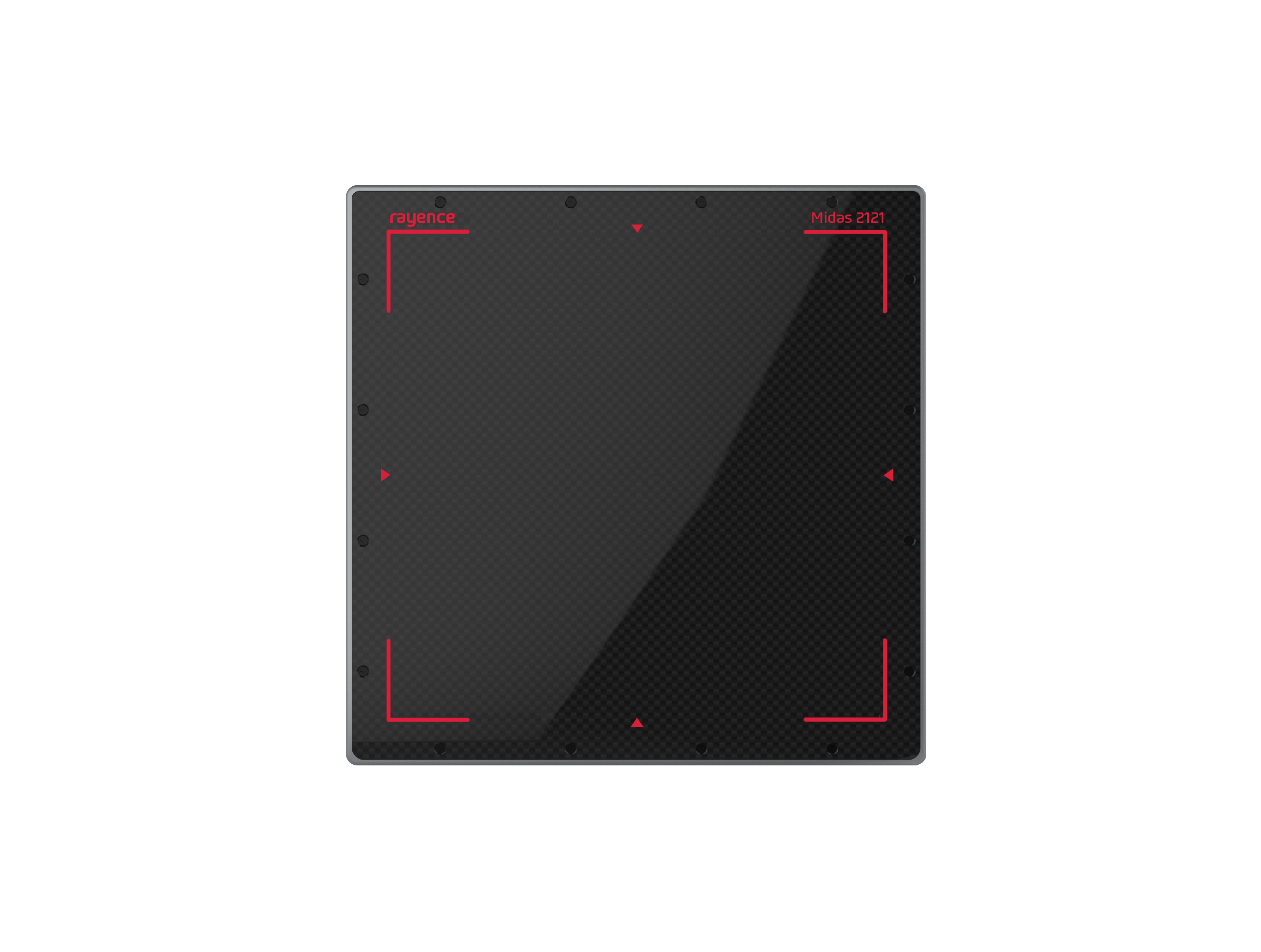

MIDAS 2121
0909 inch
World First The Largest Size CMOS
Premium Dynamic Detector
World First The Largest Size CMOS 12”
Premium X-ray Image by High Resolution
ADC on Chip
Premium Image Quality without Lag
- Superior SNR with lower noise through ADC on chip to its competitors
- Premium CMOS technology for Precision Inspection
- Pixel size : 90um
- Premium Interface for High Speed
- Frame rate : 30fps (@1x1)
High Resolution CMOS Detector
by ADC on chip
by ADC on chip
[IEEE Journal of Solid-State Circuit]Paper Contributed

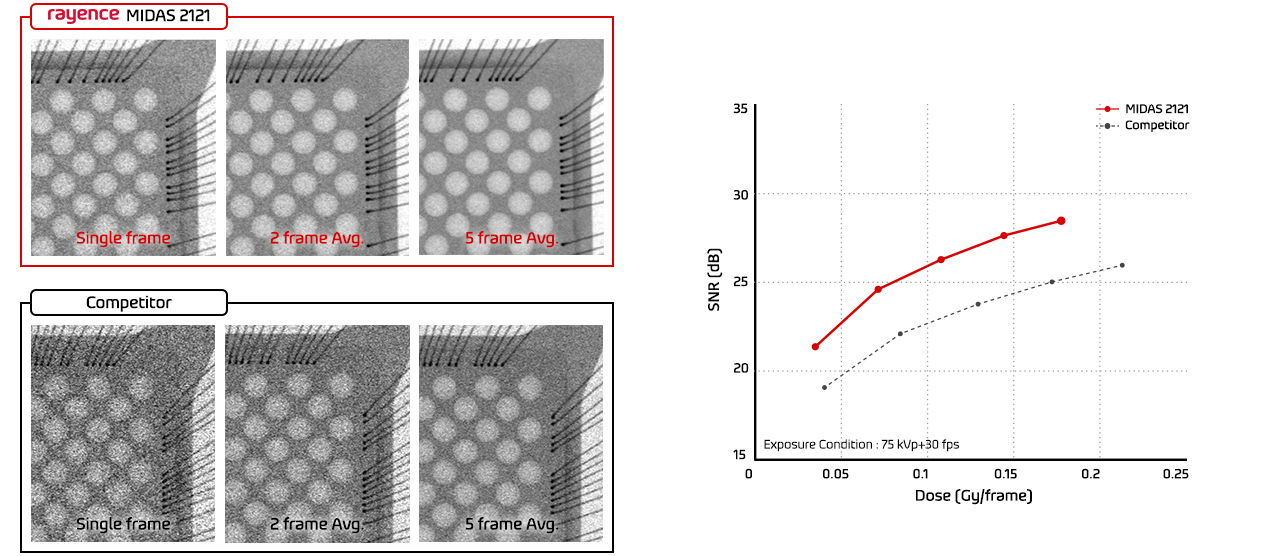

- Excellent SNR with noise reduction by ADC on chip
- 12% Higher SNR than competitor

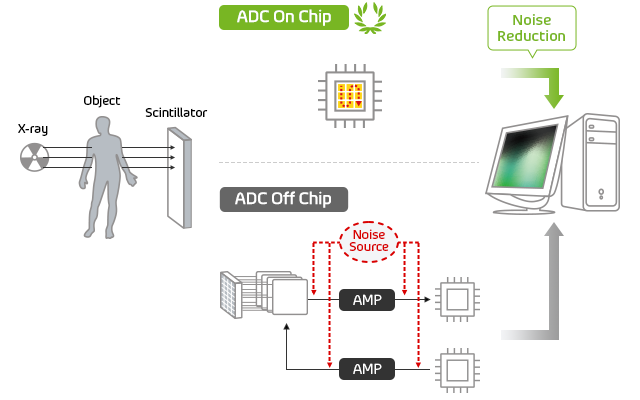

- Minimize the noise path by converting analog signals from inside to digital and outputs them to outside
Design for large-array CMOS
in real-time Imaging Detector
in real-time Imaging Detector
- Standard models in a range of pixel and detector sizes
- Large Size Inspection in CMOS Detector
- Support up to 21 x 21cm
- Robust mechanical design
Specification
| Sensor Type | CMOS |
|---|---|
| Scintillator | CsI / GOS |
| Total Pixel Matrix (Pixels) | 2304 x 2256 (@1x1) |
| Active Area (mm) | 207.4 x 203.0 |
| Pixel Pitch (㎛) | 90 (@1x1) |
| Frame Rate (fps) | 10/ (15/30 ) (@1x1) |
| Energy Range (kVp) | 40~160 |
|---|---|
| Power Consumption | Typ. 11.5 |
| A/D Conversion (bits) | 14 / 16 |
| Data Interface | GigE / C-link(Base/Medium) |
| Dimension (mm) | 245 X 245 X 55 |
| Weight (kg) | 3.2 (TBD) |
- Product design and specifications are subject to change without prior notice to improve product performance.
- Downloads are only supported for customers who have filled out information.
- The image quality level may vary depending on the product usage environment.
- Averaging : Remove the noise of image
- Blending : Confirming the difference between levels
- Line profile : Available to Image validation based on ASTM Standard.
