1417PCA·PGA
36 x 43 cm
Specification
| Sensor Type | a-Si TFT |
|---|---|
| Scintillator | CsI / GOS |
| Total Pixel Matrix (Pixels) | 2816 x 3328 |
| Active Area (mm) | 357.6 x 422.7 |
| Pixel Pitch (㎛) | 127 |
| Frame Rate (fps) | - |
| Energy Range (kVp) | 40 ~ 150 |
|---|---|
| Resolution (lp/mm) | 3.9 |
| A/D Conversion (bits) | 14 / 16 |
| Data Interface | GigE IEEE 802.11 a/g/n/ac |

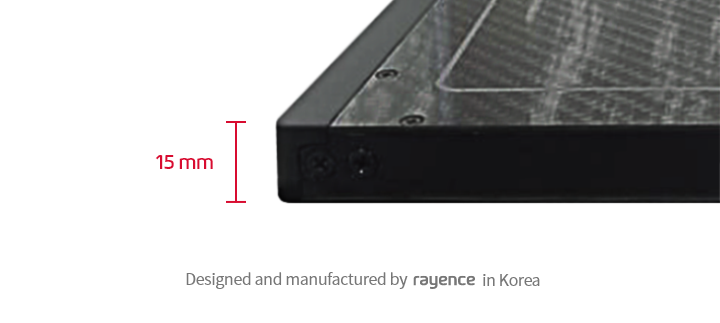

| Dimension (mm) | 460 x 417 x 15 |
| Weight (kg) | 3.5 (incl. handle) |
- Product design and specifications are subject to change without prior notice to improve product performance.
- Downloads are only supported for customers who have filled out information.
- The image quality level may vary depending on the product usage environment.

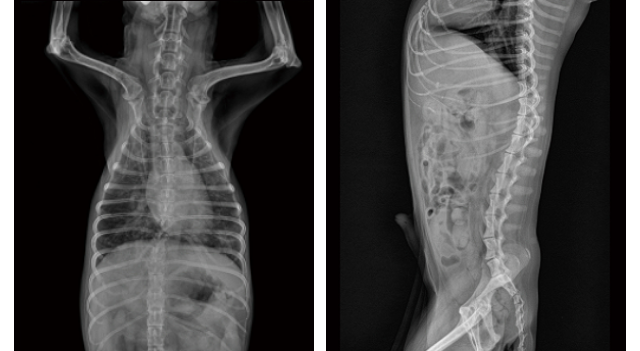

- X-ray image acquisition and processing solution for animals
- Equips with the function to acquire the images of animal teeth.
- Improves the efficiency with upgraded user GUI.
- X-ray image acquisition and processing solution for animals
- An image viewer that can be interoperated with a detector
- Development of a professional tool considering the shooting environment for animals
