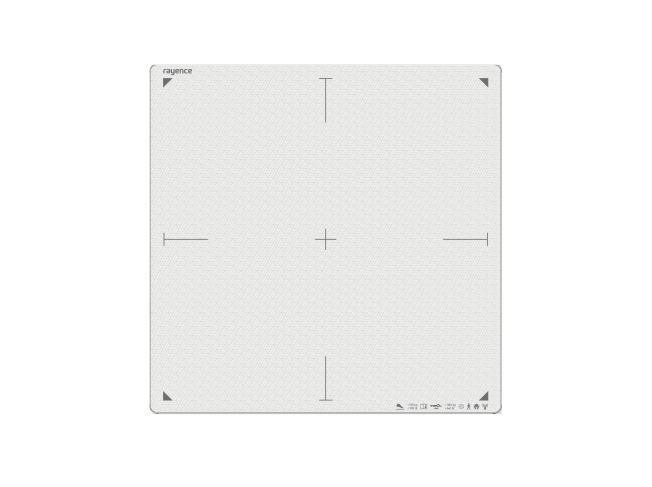

1717WCE
43 X 43 cm
1717WCE Series
- X-ray imaging solution optimized for various anatomical regions and clinical settings - 4 types
Option 1 : High Sensitivity
- Model Number : 1717WCE - HS
- Green ON, Rayence's low-dose technology
- Green ON Technology reduces radiation exposure for both patients and medical staff
- Reduces patient exposure by 40% (compared to Rayence’s 2nd generation product)
Option 2 : High Resolution
- Model Number : 1717WCE - HR
- Picel Pitch : 100μm
- Multipixel Technology
- Achieves the sensitivity of 140 μm with a 100 μm detector
- In addition to 100μm high resolution, the 140μm high SNR mode can also be selected to meet diagnostic needs such as chest, abdomen, and other imaging areas
![[용량낮춤] 1417WCE 홈페이지 업로드 2_비교.gif](https://www.rayence.com/files/attach/images/41236/072/064/500009c37409bb8b30fa47a9b22e0d33.gif)
![[용량낮춤] GlassFree.gif](https://www.rayence.com/files/attach/images/41236/072/064/57960b3d668a66403232993f028a8ac6.gif)
Option 3 : Glass Free
- Model Number : 1717WCE-GF
- Glass-free flexible panel enhances durability against drops and impact during transport
- Multipixel Technology
- Achieves the sensitivity of 140 μm with a 100 μm detector
- In addition to 100μm high resolution, the 140μm high SNR mode can also be selected to meet diagnostic needs such as chest, abdomen, and other imaging areas
Medical X-ray Imaging Solution
- Additional Benefit
Optimizing Design for Medical
- Customized solutions for diverse of imaging fields and user settings
- High Resolution, Low Dose, Glass Free
-
Improved user convenience and efficient workflow
- Built in Handle & Bumper
16 Hours Battery
- Up to 16 hours of battery life (dual battery configuration)
- Supports hot-swapping for uninterrupted use
- Efficient battery use: 10-minute charge provides up to 40 minutes of operation
![[용량 낮춤] battery.gif](https://www.rayence.com/./files/attach/images/41236/072/064/edb29cd290d9fd745a643e5bcf1fce1a.gif)
Advanced Durability
- Passed the U.S. Department of Defense durability standard test (MIL-STD-810G)
- 1717WCE HS(High Sensitivity) Model
- Robust Design : Drop Height of 1.5m
IP67 rated water proof
- IP67 rated waterproof design for easy cleaning and handling
- Designed to protect against dust and small contaminants
AccuAED
- Rayence exclusive auto trigger technology
- Captures images quickly by detecting even the slightest X-ray signals
Application
Specification
| Sensor Type | a-Si TFT, IGZO TFT |
|---|---|
| Scintillator | Csl: TI |
| Total Pixel Matrix (Pixels) | 4,302 X 4,302(99.9type) |
| Active Area (mm) | 429.8 X 429.8(99.9type) |
| Pixel Pitch (㎛) | 99.9 / 140 |
| Frame Rate (fps) | N/A |
| Energy Range (kVp) | 40 - 150 |
|---|---|
| Resolution (lp/mm) | 5.0 lp/mm(99.9type) |
| A/D Conversion (bits) | 16 |
| Data Interface | Wired : GigE |
| Dimension (mm) | 460 X 460 X 15 |
| Weight (kg) | 3.2 |
- This product is medical device, and users must carefully read and follow the safety instructions before operating it.
- Product design and specifications are subject to change without prior notice to improve product performance.
- Downloads are only supported for customers who have filled out information.
- The image quality level may vary depending on the product usage environment.
