1015DGA

비밀글입니다.
Specification

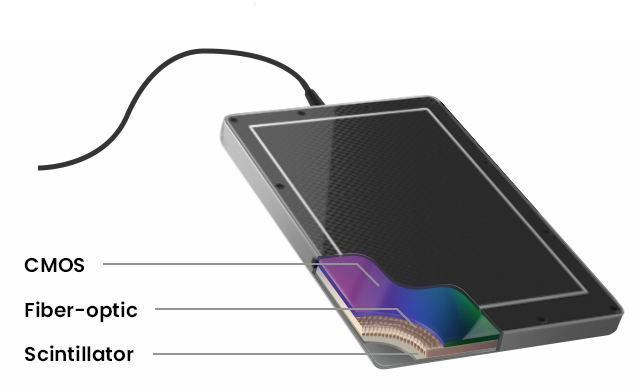

Sensor Type

CMOS

Scintillator

GOS

Total Pixel Matrix (Pixels)

1472ⅹ2172 (@1x1)

Active Area (mm)

116.4 x 145.7

Pixel Pitch (㎛)

70 (@1x1)

Frame Rate (fps)

1~4 (Super Speed mode)
1 (High Speed mode)

Energy Range (kVp)

40 – 220

Power Consumption

15

A/D Conversion (bits)

14

Data Interface

USB C-type (Super Speed mode)
USB A-type (High Speed mode)

Dimension (mm)

127.8 x 184.7 x 14.2

Weight (kg)

≤1.65

  • 제품 디자인 및 사양은 제품 성능 향상을 위해 사전예고 없이 변경될 수 있습니다.
  • 다운로드는 정보를 기입한 고객에게만 지원됩니다.
  • 제품 사용환경에 따라 영상품질수준이 달라질 수 있습니다.
