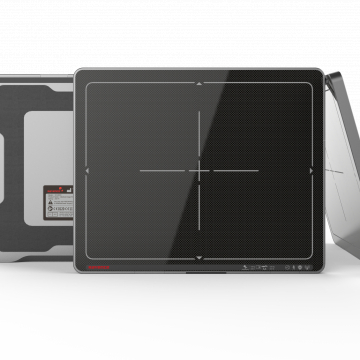

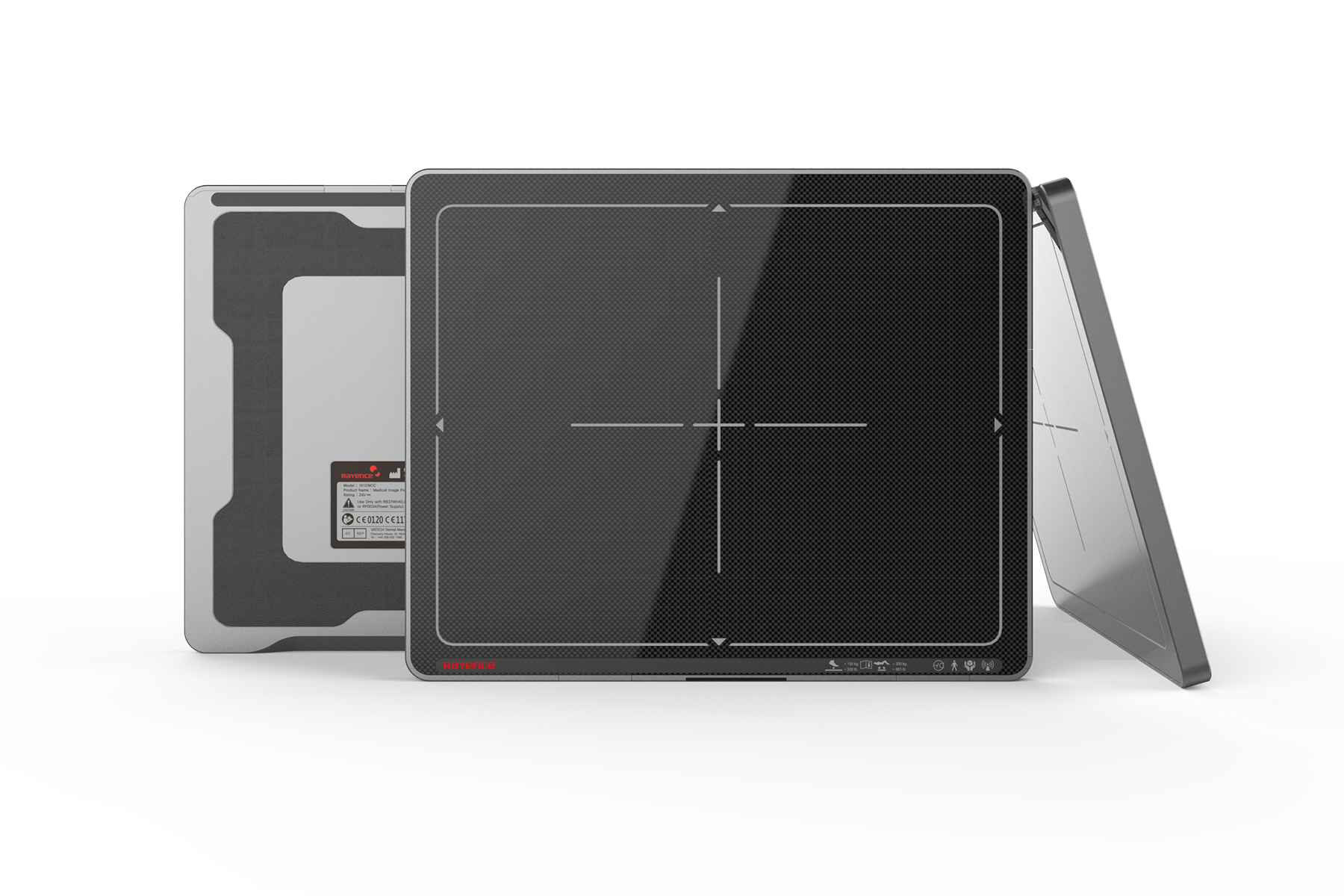

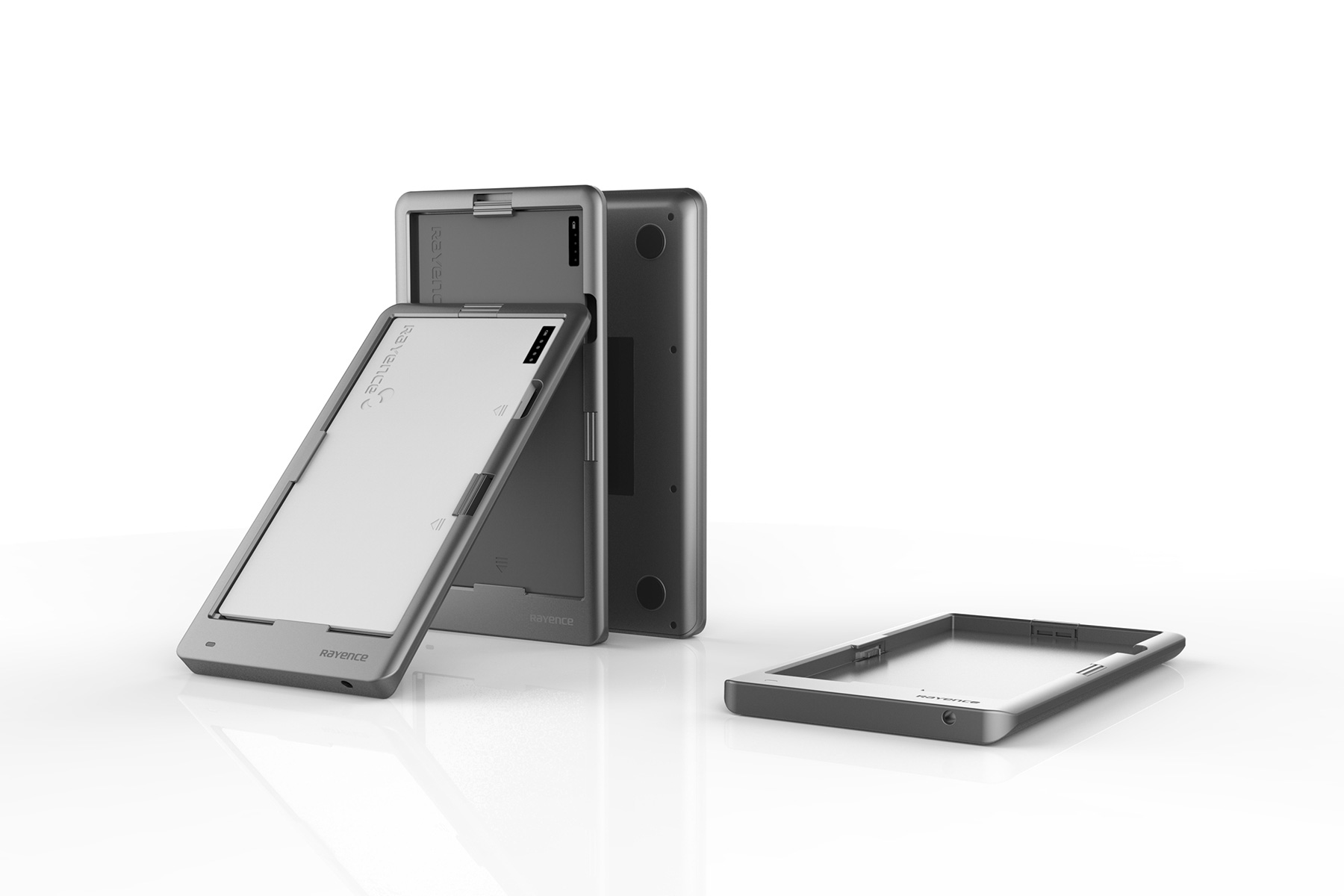

1012WCC/WGC
Easy to use, detector enables efficient work
Overview
- ISO 4090 size fits into existing CR systems
- Easy sync: Easy to use, reliable AED function
- Wireless products considering mobile environment
- Robust durability optimized for medical device environments
- Easy Grip
Specification
| Scintillator | Csl : Tl / Gd₂O₂S:Tb |
|---|---|
| Active Area | 292.6 x 227.6 mm |
| Active Pixels | 2,304 x 1,792px |
| Pixel Pitch | 127㎛ |
| Limiting Resolution | 3.9 lp/mm |
| A/D Conversion | 14/16 bits |
| Preview Time | ≤ 2 Sec |
| Interface | Wired : GigE Wireless : 802.11 a/g/n/ac Wireless LAN |
| Energy Range | 40~150 kVp |
| Dimension(W x L x H) | 328 x 268 x 15 mm |
| Weight | 1.8 kg (3.96 lbs) |
The specifications listed on this website are subject to change without prior notification.
