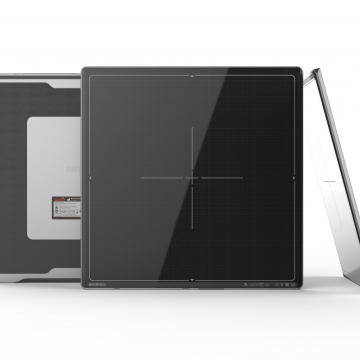

1717WCC/WGC
Overview
- ISO 4090 size fits into existing CR systems
- Easy sync : Easy to use, reliable AED function
- Wireless products considering mobile environment
- Robust durability optimized for medical device environments
- Easy Grip
Specification
| Scintillator | Csl : Tl / Gd₂O₂S:Tb |
|---|---|
| Active Area | 127type : 422.7 x 422.7 mm 140type : 430.1 x 430.1 mm |
| Active Pixels | 127type : 3,328 x 3,328px 140type : 3,072 x 3,072px |
| Pixel Pitch | 127 / 140㎛ |
| Limiting Resolution | 127type: Min. 2.5 / Max. 3.93 lp/mm 140type: Min. 2.5 / Max. 3.57 lp/mm |
| A/D Conversion | 14 / 16 bits |
| Preview Time | ≤ 2 Sec |
| Interface | Wired : GigE Wireless : 802.11 a/g/n/ac Wireless LAN |
| Energy Range | 40~150 kVp |
| Dimension(W x L x H) | 460 x 460 x 15 mm |
| Weight | 3.5 kg (7.71 lbs) |
The specifications listed on this website are subject to change without prior notification.
