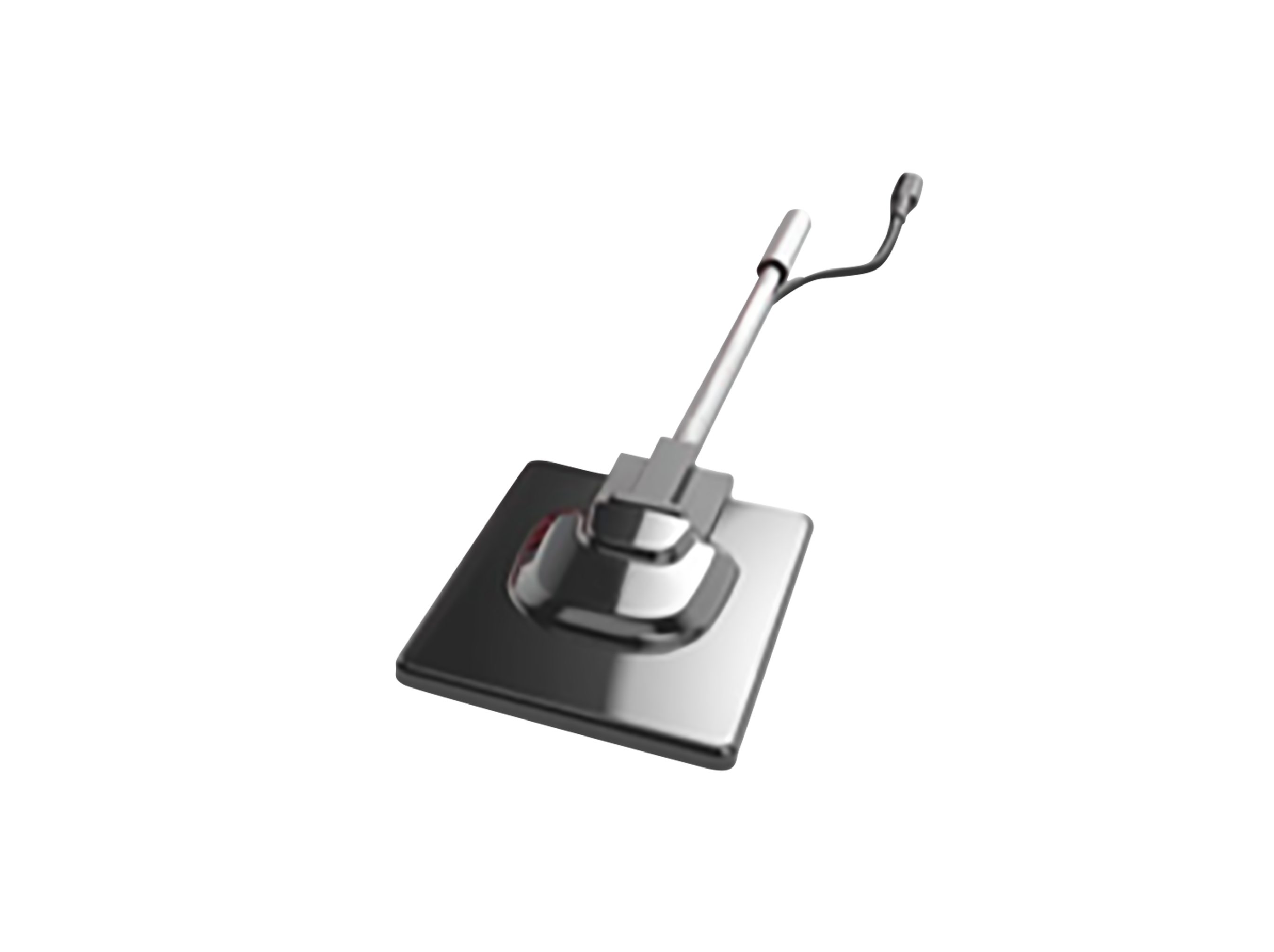

HDI-U70EF
11 x 17 cm
馬の特徴に特化したイメージングソリューション
- 持ち運びと操作がしやすいイメージングソリューション
- 特化したインターフェイスにより、最高の画質と効率的な操作を実現しています。
- 世界初の4 x 6インチ馬用口腔センサーで、正確性の高い診断を実現できています。
優れた検査の正確性
- CMOSセンサーだと、移動環境でも低線量で優れた画質が得られます。
- （70 um ピクセルピッチ）露出時間が短いため、連写が可能となります。
外部環境でも安定したパフォーマンスを実現します。
- 防水・防塵レベル:IP 68
- USBタイプなので、さまざまな医療環境でも使いやすい
- 完璧な防水性で、コンタミネーションを防止します
- 専用のシリコンパッドにより、消毒作業が簡単に行えます。
仕様
| センサータイプ |
CMOS |
| 蛍光材料 |
CsI |
| 合計ピクセルマトリクス（ピクセル) |
1472 x 2172 |
| 有効エリア (mm) |
103.0 x 152.0 |
| ピクセルピッチ (㎛) |
70 |
| フレームレート（fps） |
- |
| エネルギー範囲（kVp） |
55 ~ 70 |
| 解像度（lp/mm） |
16.8 |
| A/D変換(ビット) |
12 |
| データインタフェース |
USB 3.1C Gen1 |
| サイズ (mm) |
115 x 169 x 10 |
| 重さ (kg) |
- |
- 製品の性能を向上させるため、製品の設計と仕様は事前通知なしに変更することがあります。
- 情報を記入したお客様だけがダウンロード可能となります。
- 画像の品質レベルは製品の使用環境によって異なる場合があります。
- 動物向けのX線画像と処理ソリューション
- 動物の歯の画像を取得可能な機能も備えています。
- ユーザーGUIのアップグレードを通じて効率を向上させています。
- 動物向けのX線画像と処理ソリューション
- ディテクターと連携可能な画像ビューアー
- 動物を撮影するための環境を考慮した専門的なツール
