Green ON - F Series



	Dose reduction made possible with Rayence Core CsI



	50% reduction in patient exposure and improved SNR

		(compared to the company's 1st generation Fluoroscopy product)


	Acquire high DQE images even at low doses with Green ON technology











Lineup of various active areas

ranging from small to large



	Green ON 0909 : 21 X 21cm (9inch)
	Green ON 1212 : 29.8 X 29.8cm (12inch)
	Green ON 1717 : 43 X 43cm (17inch)





















Premier Image Quality with

Super IGZO TFT




	Application of Super IGZO TFT


	Capturing at a frame rate of 29fps (@1x1) (for C-arm/RF)


	Noise reduction















	Rayence’s new x-ray Imaging technology

	In addition to 100μm high resolution,
	it is also possible to select the 140μm high SNR mode
	according to the diagnostic area such as chest, abdomen, etc.














Application



        )

    [httpStatusCode] =>
)
1

new

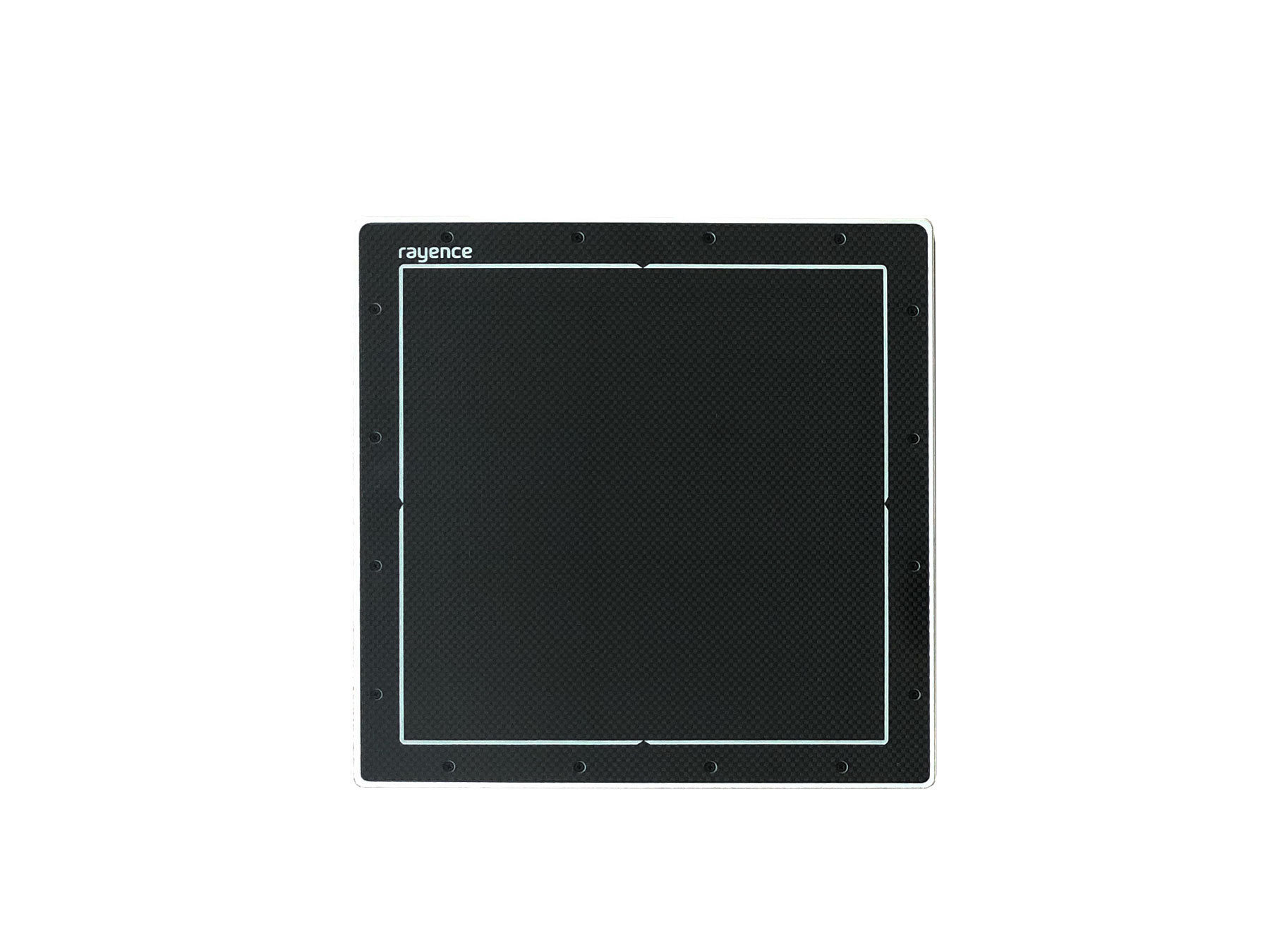

Green ON 0909

Sensor Type: Super IGZO TFT

Total Pixel Matrix (Pixels): 1,536 X 1,536

Active Area (mm): 215.0 X 215.0

Pixel Pitch (㎛): 140

Frame Rate (fps): 29(@1x1)
58(@2ⅹ2)

compare

documentItem Object
(
    [document_srl] => 65603
    [lang_code] => ko
    [grant_cache] =>
    [allow_trackback_status] =>
    [columnList] => Array
        (
        )

    [allowscriptaccessList] => Array
        (
        )

    [allowscriptaccessKey] => 0
    [uploadedFiles] => Array
        (
        )

    [error] => 0
    [message] => success
    [variables] => Array
        (
            [title] => Green ON 1717
            [nick_name] => 관리자
            [regdate] => 20240326175921
            [readed_count] => 0
            [is_notice] => N
            [document_srl] => 65603
            [module_srl] => 37613
            [category_srl] => 37616
            [lang_code] => ko
            [member_srl] => 3474
            [last_update] => 20240329172258
            [comment_count] => 0
            [trackback_count] => 0
            [uploaded_count] => 3
            [status] => PUBLIC
            [title_bold] => N
            [title_color] => N
            [content] =>













Green ON - F Series



	Dose reduction made possible with Rayence Core CsI



	50% reduction in patient exposure and improved SNR

		(compared to the company's 1st generation Fluoroscopy product)


	Acquire high DQE images even at low doses with Green ON technology











Lineup of various active areas

ranging from small to large



	Green ON 0909 : 21 X 21cm (9inch)
	Green ON 1212 : 29.8 X 29.8cm (12inch)
	Green ON 1717 : 43 X 43cm (17inch)





















Premier Image Quality with

Super IGZO TFT




	Application of Super IGZO TFT


	Capturing at a frame rate of 29fps (@1x1) (for C-arm/RF)


	Noise reduction















	Rayence’s new x-ray Imaging technology

	In addition to 100μm high resolution,
	it is also possible to select the 140μm high SNR mode
	according to the diagnostic area such as chest, abdomen, etc.














Application




        )

    [httpStatusCode] =>
)
1

new

Green ON 1717

Sensor Type: Super IGZO TFT

Total Pixel Matrix (Pixels): 3,072 X 3,072

Active Area (mm): 430.0 X 430.0

Pixel Pitch (㎛): 140

Frame Rate (fps): 15(@1x1)
30(@2ⅹ2)

compare

documentItem Object
(
    [document_srl] => 38437
    [lang_code] => ko
    [grant_cache] =>
    [allow_trackback_status] =>
    [columnList] => Array
        (
        )

    [allowscriptaccessList] => Array
        (
        )

    [allowscriptaccessKey] => 0
    [uploadedFiles] => Array
        (
        )

    [error] => 0
    [message] => success
    [variables] => Array
        (
            [title] => 0606FCA (TBD)
            [nick_name] => admin
            [regdate] => undefined
            [readed_count] => 395
            [is_notice] => N
            [document_srl] => 38437
            [module_srl] => 37613
            [category_srl] => 37616
            [lang_code] => ko
            [member_srl] => 4
            [last_update] => 20240415095133
            [comment_count] => 0
            [trackback_count] => 0
            [uploaded_count] => 12
            [status] => PUBLIC
            [title_bold] => N
            [title_color] => N
            [content] =>






Optimized design for C-arm application


	Compact design for space utilization and mobility efficiency (6x6 / 9x9 inch)











Low noise is achieved by advanced CMOS technology


	High DQE
	High sensitivity with less noise
	Enables get good Image quality at reduced dose more than 30%
	Excellent contrast characteristics at dense, thick objects.











Quick diagnosis avaliable at high frame rate


	High frame rate (max. 30 fps)
	High & Quick diagnostic accuracy






Application




        )

    [httpStatusCode] =>
)
1

0606FCA (TBD)

Sensor Type: CMOS

Total Pixel Matrix (Pixels): 1728 x 1692 (@1x1)
864 x 846 (@2x2) (TBD)

Active Area (mm): 155.5 x 152.2 (TBD)

Pixel Pitch (㎛): 90(@1x1)
180 (@2x2)

Frame Rate (fps): 12 / (15/30) (@1x1)
24 / (30/30) (@2x2)
*GigE / C-link (Base/Medium)

compare

documentItem Object
(
    [document_srl] => 38456
    [lang_code] => ko
    [grant_cache] =>
    [allow_trackback_status] =>
    [columnList] => Array
        (
        )

    [allowscriptaccessList] => Array
        (
        )

    [allowscriptaccessKey] => 0
    [uploadedFiles] => Array
        (
        )

    [error] => 0
    [message] => success
    [variables] => Array
        (
            [title] => 0909FCA
            [nick_name] => admin
            [regdate] => 20201014221022
            [readed_count] => 383
            [is_notice] => N
            [document_srl] => 38456
            [module_srl] => 37613
            [category_srl] => 37616
            [lang_code] => ko
            [member_srl] => 4
            [last_update] => 20240327175738
            [comment_count] => 0
            [trackback_count] => 0
            [uploaded_count] => 10
            [status] => PUBLIC
            [title_bold] => N
            [title_color] => N
            [content] =>






Optimized design for C-arm application


	Compact design for space utilization and mobility efficiency (6x6 / 9x9 inch)











Low noise is achieved by advanced CMOS technology


	High DQE
	High sensitivity with less noise
	Enables get good Image quality at reduced dose more than 30%
	Excellent contrast characteristics at dense, thick objects.











Quick diagnosis avaliable at high frame rate


	High frame rate (max. 30 fps)
	High & Quick diagnostic accuracy






Application




        )

    [httpStatusCode] =>
)
1

0909FCA

Sensor Type: CMOS

Total Pixel Matrix (Pixels): 1120 x 1120 (@1x1)
560 x 560 (@2x2)

Active Area (mm): 201.6 x 201.6

Pixel Pitch (㎛): 180 (@1x1)
360 (@2x2)

Frame Rate (fps): 33 (@1x1)
75 (@2x2)

compare

documentItem Object
(
    [document_srl] => 46141
    [lang_code] => ko
    [grant_cache] =>
    [allow_trackback_status] =>
    [columnList] => Array
        (
        )

    [allowscriptaccessList] => Array
        (
        )

    [allowscriptaccessKey] => 0
    [uploadedFiles] => Array
        (
        )

    [error] => 0
    [message] => success
    [variables] => Array
        (
            [title] => 1212FCA
            [nick_name] => admin
            [regdate] => undefined
            [readed_count] => 523
            [is_notice] => N
            [document_srl] => 46141
            [module_srl] => 37613
            [category_srl] => 37616
            [lang_code] => ko
            [member_srl] => 4
            [last_update] => 20240327175642
            [comment_count] => 0
            [trackback_count] => 0
            [uploaded_count] => 14
            [status] => PUBLIC
            [title_bold] => N
            [title_color] => N
            [content] =>



rayence's powerful performance, Super IGZO


	Super IGZO, panel designed by rayence
	No Image lag at high speed
	High reliability that are not defective even in long-term use

		Life time : 65,000 times avaliable (10 times a day)












Clear Image without image lag


	Accurate dianosis at High DQE & SNR

	(Increased DQE up to 80%, Increased SNR up to 25%)
	Enables get good Image quality at reduced dose more than 30%











Real-time Imaging solution for C-arm/RF


	Supporting optimized C-arm/RF driver mode for C-arm/RF application






Application




        )

    [httpStatusCode] =>
)
1

1212FCA

Sensor Type: Super IGZO TFT

Total Pixel Matrix (Pixels): 1536 x 1536 (@1x1)
768 x 768 (@2x2)

Active Area (mm): 298.0 x 298.0

Pixel Pitch (㎛): 194 (@1x1)
388 (@2x2)

Frame Rate (fps): 33 (@1x1)
75 (@2x2)

compare

documentItem Object
(
    [document_srl] => 38808
    [lang_code] => ko
    [grant_cache] =>
    [allow_trackback_status] =>
    [columnList] => Array
        (
        )

    [allowscriptaccessList] => Array
        (
        )

    [allowscriptaccessKey] => 0
    [uploadedFiles] => Array
        (
        )

    [error] => 0
    [message] => success
    [variables] => Array
        (
            [title] => 1717FCC·FGC
            [nick_name] => admin
            [regdate] => undefined
            [readed_count] => 3724
            [is_notice] => N
            [document_srl] => 38808
            [module_srl] => 37613
            [category_srl] => 37616
            [lang_code] => ko
            [member_srl] => 4
            [last_update] => 20221110093202
            [comment_count] => 0
            [trackback_count] => 0
            [uploaded_count] => 8
            [status] => PUBLIC
            [title_bold] => N
            [title_color] => N
            [content] =>




Real-time Imaging solution for RF application

(Radiography and Fluoroscopy)


	Dynamic detector for Diagnosis & Surgery
	Outstanding performance for accurate and fast diagnosis
	Supporting optimized RF driver mode for RF application











IGZO detector providing superior image quality at low dose


	No Image lag at high speed
	Accurate dianosis at High DQE & SNR

	(Increased DQE up to 80%, Increased SNR up to 25%)
	Enables get good Image quality at reduced dose more than 30%









Fast Frame Rate





Large Active Area






High performance providing High resolution image


	Large active area (17x17 inch)
	Fast frame rate max. 15fps by 5Giga Ethernet





Application




        )
