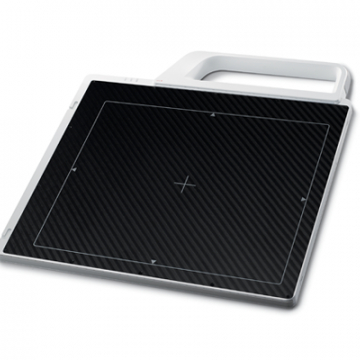

Compact design, greater flexibility



  • Offers a wide range of flexibility
  • Ergonomically designed detachable handle
  • Ideal for Orthopedic and Pediatric use
  • Auto-triggering technology


Scintillator Csl : Tl
Active Area 260 x 325 mm
Active Pixels 2,048 x 2,560px
Pixel Pitch 127㎛
Limiting Resolution 3.9 lp/mm
A/D Conversion 14/16 bits
Preview Time ≤ 2 Sec
Interface Wired : 1Gbps Ethernet
Wireless : 802.11 a/g/n Wireless LAN
Energy Range 40~150 kVp
Dimension(W x L x H) 337 x 395 x 18 mm
Weight 2.7 kg (6.0 lbs)
Not incl.handle, incl.battery
The specifications listed on this website are subject to change without prior notification.
  • This product is a medical device and the users must read the "Precautions" and "Usage" thoroughly.
  • Advertising deliberation acquired : Deliberation number 2013-I10-17-2957
